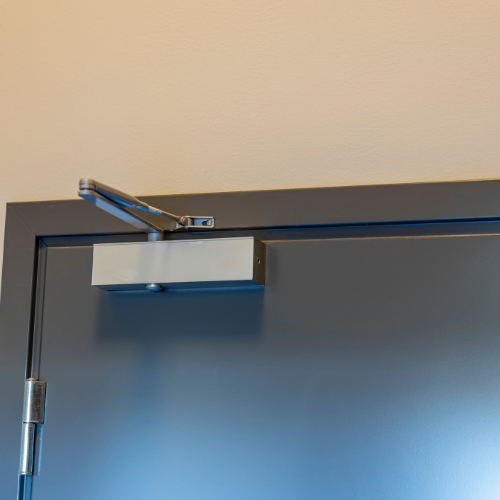

The DC-901 model from Dorcase is designed to meet stringent safety and performance standards, including compliance with EN 1154 for closing force. With a maximum leaf width of 1100 mm and a versatile installation type for both hinge-side and transom configurations, this model ensures effective functionality. Its features include a 180° opening angle, suitability for fire protection doors, and optional hold-open functionality, making it an ideal choice for various applications.
| Model | Specification |
|---|---|
| Model Number | DC-901 |
| Brand | Dorcase |
| Barrier Standard | Fire barrier standard according to DIN 18040, max width |
| Maximum Leaf Width | 1100 mm |
| Leaf Width | 140.0 mm |
| Installation Type | Door leaf on hinge side; transom opposite hinge side |
| Maximum Opening Angle | 180° |
| Fire Door Suitability | Yes, with valve |
| Closing Speed Adjustment | Yes |
| Closing Force Adjustment Position | Front |
| Hold-Open Feature | Optional |
